We offer a wide selection of loading dock equipment including dockboards, dock plates, dock levelers, yard ramps and portable dock ramps, platforms, and wheel risers. Our loading dock equipment ensures that dock areas are more accessible, and allows for the safe and efficient movement of heavy, valuable goods. Loading dock equipment available can be purchased in custom sizes and are adjustable to fit any type of loading vehicle.

For additional information on dock products from Alliance Pallet Rack, click the links below to view.

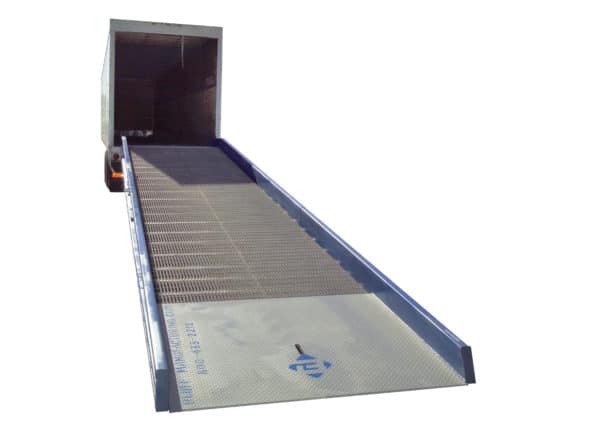

Yard Ramps

The Bluff Manufacturing heavy duty yard ramp is manufactured for a wide range of applications. They are built from structural steel, diamond deck steel plate, and steel grating – giving them a capacity range of 16,000 lbs to 150,000 lbs.

Alliance Pallet Rack can help specify, engineer, install and service these yard ramps to help you maintain maximum efficiency. Common Industry Applications for Yard Ramps include:

  • Buildings
  • Mobile yard ramps into truck
  • Outside docks
  • Levels inside buildings
  • Building to building

A Bluff portable yard ramp is great for loading and unloading of pallet goods, automobiles, sound equipment, food goods or any other unit that needs to move from one level to another.

Dock Levelers

We sell and service industry leading dock levelers built by Bluff Manufacturing. If you’re dealing with a height difference between a platform and a truck/trailer, Alliance Pallet Rack can provide you with a solution to fit your needs.

An Edge of Dock leveler is designed to have a range of 5” above and 5” below dock level. After properly installing the dock leveler to a steel channel or approach plate, the leveler can be positioned and locked onto the trailer for loading/unloading.

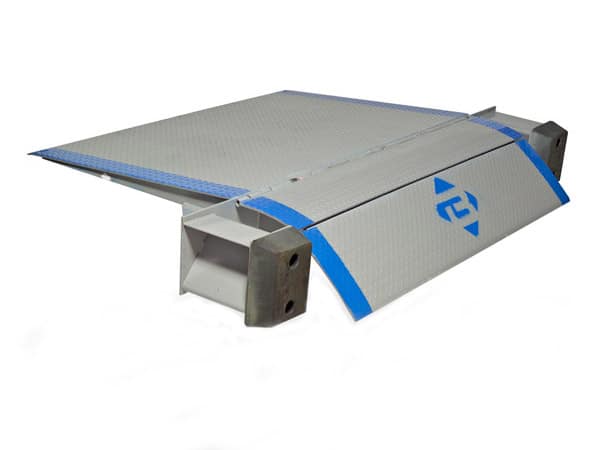

Lo Dock Leveler
  • Capacities from 20,000 to 30,000 lbs
  • Available widths of 66”, 72” and 78”
  • Self-Storing handle
  • Bumper and bumper blocks included
  • Optional add-ons include: anchor kit, approach plate, longer lip for refrigerated trucks, steel faced bumpers and hydraulic package

Lo-Dock Levelers are a more affordable option that can be installed onto a concrete dock (no welding required). This solution will allow you to effectively raise up a low dock from 3” to 20”.

  • Capacities from 20,000 to 30,000 lbs
  • Bumper and bumper blocks included
  • Worksheet required for proper design
  • Options include: door seals, runoff curbs, anchor kit, longer lip for refrigerated trucks, steel faced bumpers and hydraulic package

Contact Alliance Pallet Rack today to get a quote on a custom dock leveler solution.

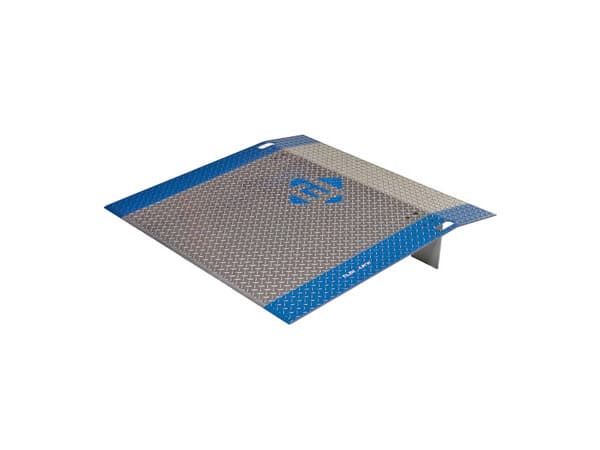

Dock Plate

Dock Plates

Our Bluff dock plates are ideal for bridging a gap and manually moving handtrucks and pallet jacks with low to medium volume. With dock plates installed, loading and unloading becomes light and effective. The lighter capacity makes the process effortless.

  • Ez-Roll Handles – One person positioning of a dock plate without the use of a forklift
  • Lifting Chains – Allows for use of a forklift in dock plate placement

Need access to a dock plate temporarily? Alliance Pallet Rack has dock plates for rent for our customers in the Dallas / Fort Worth metroplex.

Contact Alliance Pallet Rack today to get a quote on a custom dock plate solution.

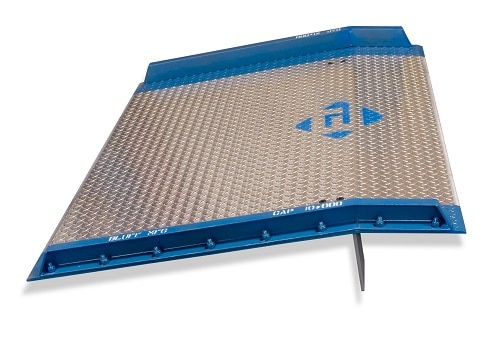

Dock Boards

Alliance Pallet Rack is an expert resource in specifying and installing dock boards. Whether you need an aluminum or steel dock board, we take your specific needs into consideration to ensure a safe and reliable operation. Dock boards are great for medium to heavy volumes utilizing a forklift.

  • Aluminum Dock Board – lighter than steel dock boards, ideal for situations with sparking concerns or corrosive environments
  • Steel Dock Board – very durable with a long life expectancy, less expensive than aluminum dock boards

Need access to a dock board temporarily? Alliance Pallet Rack has dock boards for rent for our customers in the Dallas / Fort Worth metroplex.

Contact Alliance Pallet Rack today to get a quote on a custom dock board solution.

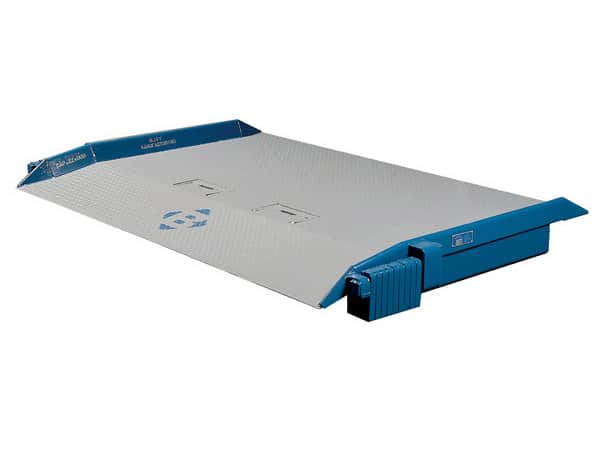

Rail Dock Board

Rail Dock Boards

Improve your process for loading and unloading from railcars by using a rail dock board specified by Alliance Pallet Rack. We can custom design each rail dock board to meet the requirements of your site. The lifting loops and locking rings make rail dock board attachments easy and secure.

  • All welded steel construction
  • Capacities from 15,000 to 90,000 lbs
  • Worksheet required for proper design

Contact Alliance Pallet Rack today to get a quote on a custom rail dock board solution.

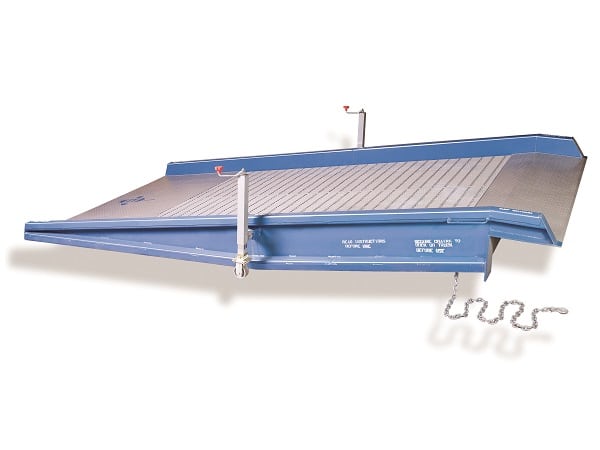

Mini Ramps

The Bluff Manufacturing Mini Ramp is a perfect solution when your high side is 32″ or less you. With the optional mobility package the Mini Ramp does not need the hydraulic actuated undercarriage to move it to the work. Two screw jacks with rigid steel casters are mounted at the balance point and a couple of people can move it on a hard surface. Capacities start at 12,000 lbs and go up from there. Widths of 70″ & 84″ and lengths starting at 15′. Call for special sizes and capacities.

Contact Alliance Pallet Rack today to get a quote on a custom mini ramp solution.
